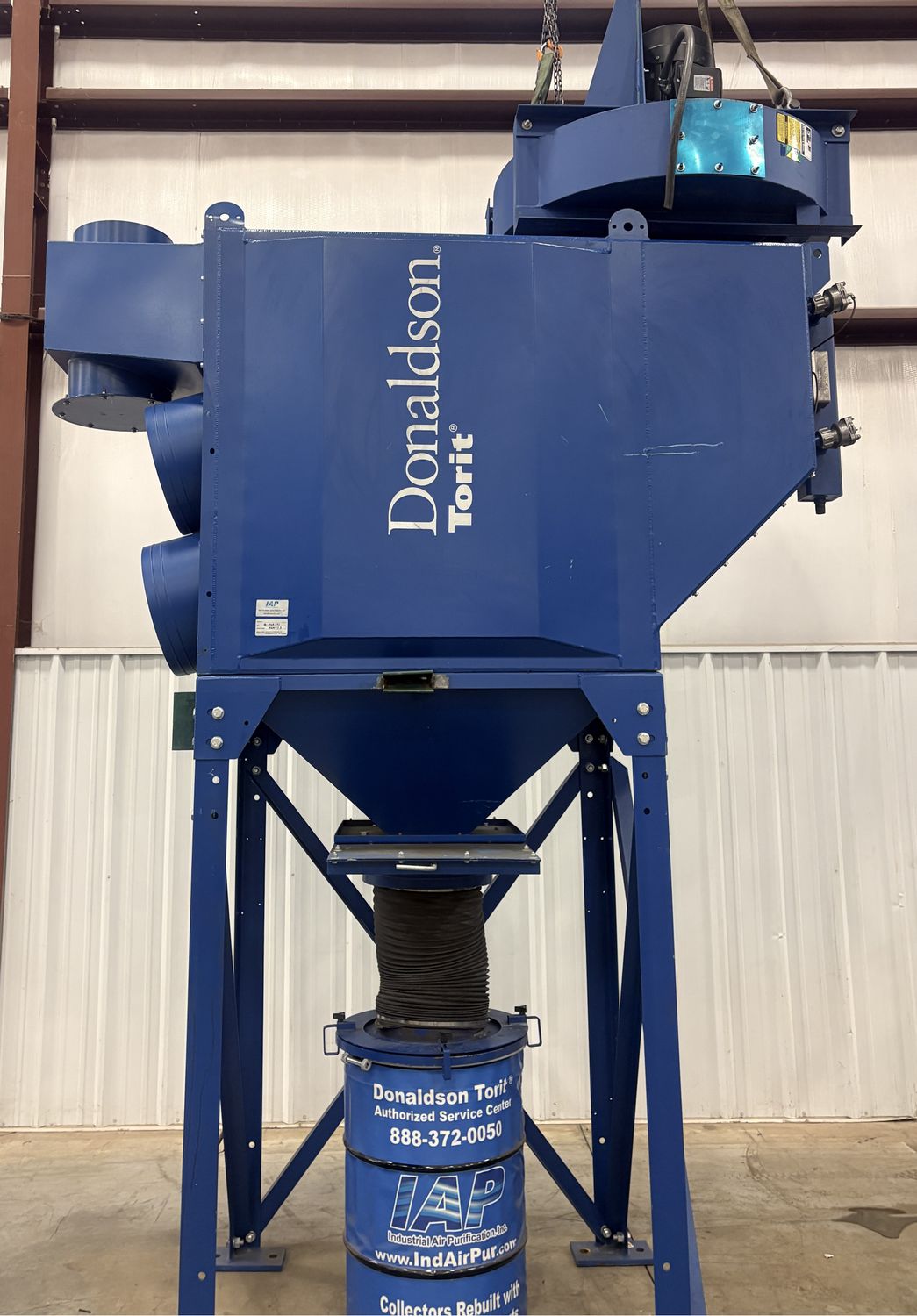

- pressure washed, cleaned, refurbished, tested and works
- 20 hp motor
- 5000 cfm at 14" wg
- leg structure for 55 gallon drum
- hopper slide gate
- drum hose and lid with latches
- filter cleaning system (diaphragms, solenoids, and junction box for connection)
- compressed air connection for filter cleaning system, 90 psi required, 1" NPT connection
- NEW (8) NanoFiber Fire Retardant Filters, 1520 sq. ft. of total media
- bag out filter housing (slide trash bag over filter access door and pull filter out to keep dust from falling off filter)
- abrasion inlet with top duct connection, 14” diameter
- Single Control Panel (pre-wired), includes: 460V, NEMA12, safety disconnect, VFD with Air Flow Controller (modulates fan hertz automatically based on filter pressure), digital delta P filter cleaning controls, high differential pressure alarm, local/remote selector switch for starting, on/off button with green running light, electrical drawing
- NEW 50 feet filter pressure tubing
- grounding strap on leg
- 5" ANSI Flange on Hopper for previous Fike System (covered with a cover plate)
- 2" Tri Clamp connection on clean air chamber for previous Fike System (covered with cover plate/clamp)
- hardware (nuts, bolts, washers)
- NEW collector sealant
- installation manual
- parts manual
- hardware
- 180 day structural warranty
- 90 day electrical warranty
Fike Explosion Suppression System, includes:
- refer to pictures of what will be supplied, sold as is, no warranty
- we will not install cover plates on the 2" and 5" connections above
