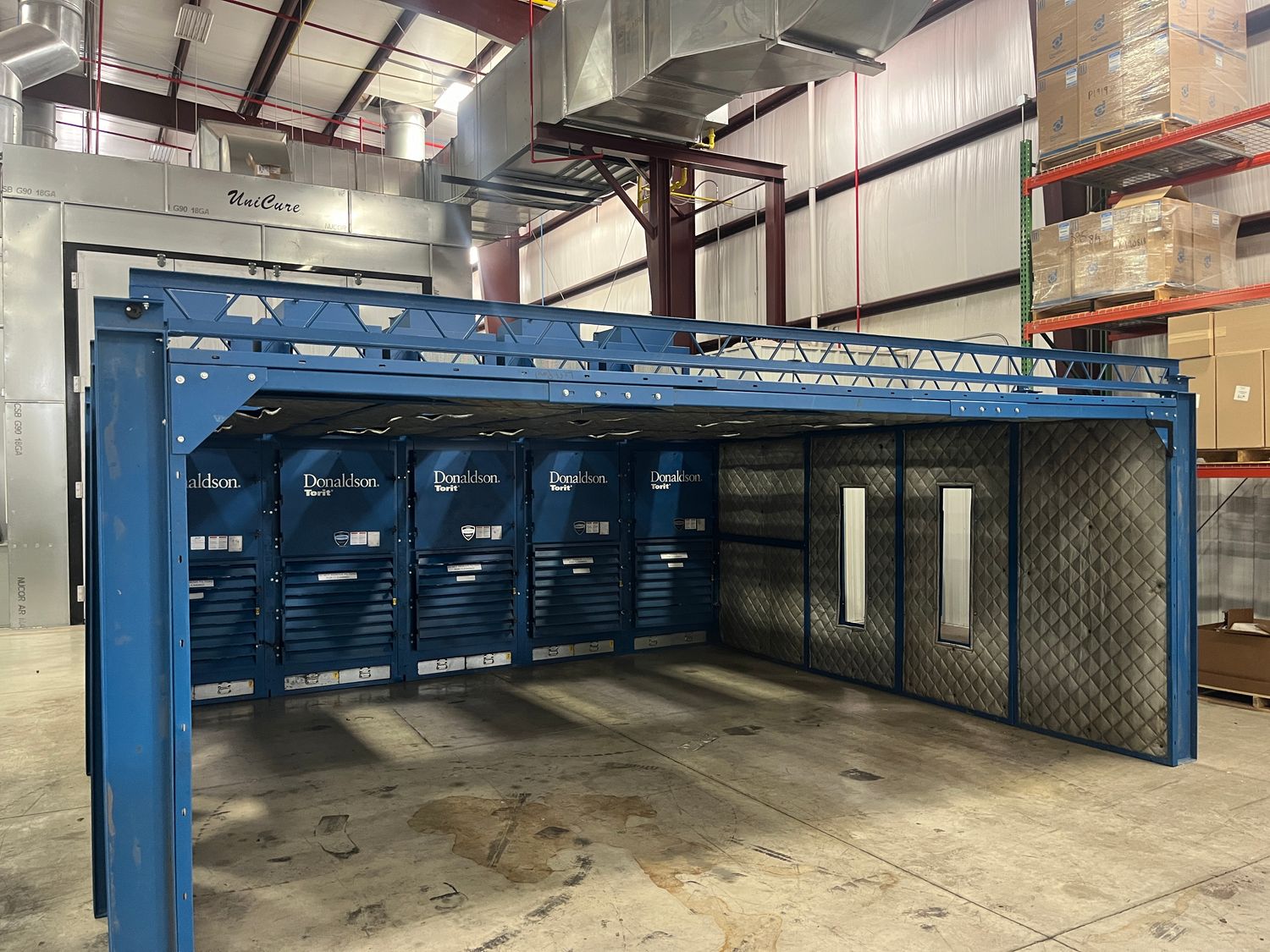

Donaldson DWS6-5 Dust Booth (for sanding, grinding, etc.)

Donaldson DWS6-5 Dust Booth (for sanding, grinding, etc.), includes:

- Good Condition

- pressure washed, cleaned, tested, and works

- 27,500 cfm (5 modules each with: 6 filters, 7.5 HP motor, 2 galvanized dust drawers)

- NEW, (30) nanofiber fire retardant filters

- NEW (10) return air HEPA filters with magnehelic filter gauge

- reverse air pulse cleaning system

- booth with sound insulation on top and both sides; and cut out on top and sides for (14) lights.

- dimensions: 16.5' inside depth, 19.5' inside width, 85" inside height

- dimensions: 20.5' outside depth, 20' outside width, 138" outside height which accounts the HEPA module

- Air Connection: 1" NPT airline reduced to 3/4" NPT. Airline piping included per picture. 60 PSI air requirement.

- sound attenuation curtain (interior)

- (5) 3/4" NPT sprinkler connection ports on top of collector

- drawing

- installation manual

Donaldson Control Panel, includes:

- 460V, safety disconnect, on/off button, contactors/overloads, PLC (log in and pass written inside door), 50 FLA

- filter gauge (cartridge)

- filter cleaning: continuous clean, after shift clean

- drawing

Optional: NEW (14) LED light fixture (electrical and switch by customer), add $3285.99
