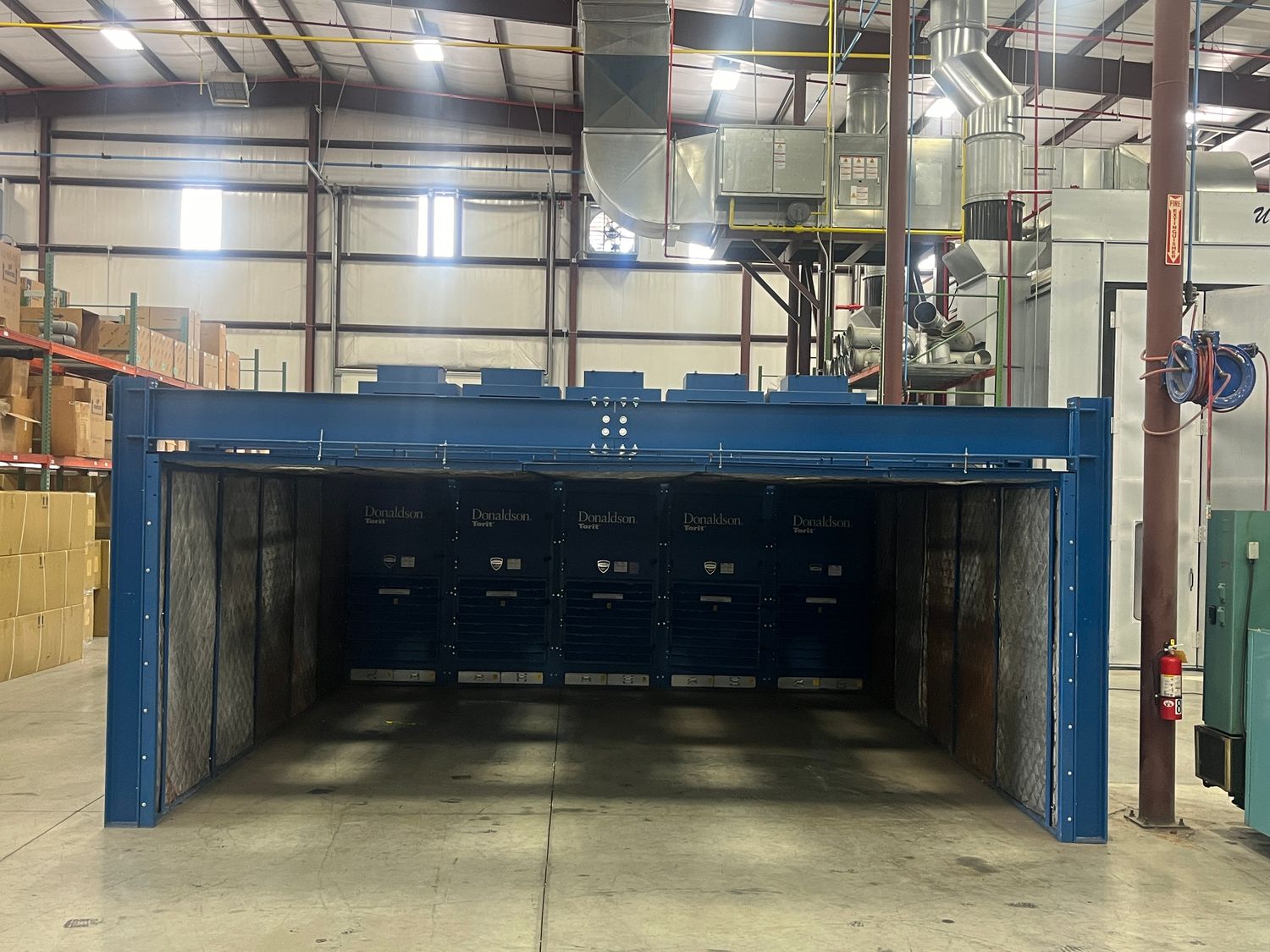

Donaldson DWS6-5 Dust Booth (for sanding, grinding, etc.) with High Temperature Shutdown Controls

Donaldson DWS6-5 Dust Booth (for sanding, grinding, etc.) with High Temperature Shutdown Controls, includes:

- Good Condition

- pressure washed, cleaned, tested, and works

- 27,500 cfm (5 modules each with: 6 filters, 7.5 HP motor, 2 galvanized dust drawers)

- NEW, (30) nanofiber fire retardant filters

- (10) return air HEPA filters with magnehelic filter gauge. Filters are in good condition.

- reverse air pulse cleaning system

- booth with sound insulation on top and both sides; and cut out on top and sides for (14) lights. Robust I-beam frame support system.

- dimensions: 20' inside depth, 19' inside width, 89" inside height

- dimensions: 24' outside depth, 20' outside width, 138" outside height which accounts the HEPA module

- Air Connection: 1" NPT airline reduced to 3/4" NPT. Airline piping included per picture. 60 PSI air requirement.

- NEW, compressed air dump valve, 3/4" NPT connection

- sound attenuation curtain (interior)

- (5) temperature thermocouples

- (5) 3/4" NPT sprinkler connection ports on top of collector

- drawing

- installation manual

Donaldson Control Panel, includes:

- 460V, safety disconnect, on/off button, contactors/overloads, PLC (log in and pass written inside door), 50 FLA

- filter gauge (cartridge)

- filter cleaning: continuous clean, after shift clean

- high temperature thermocouple shutdown that dumps compressed air dump valve and turns fans off

- drawing

Optional: NEW (14) LED light fixture (electrical and switch by customer), add $3285.99

Note: before disassembly, we will sharpie #'s to mating components to ease assembly.
