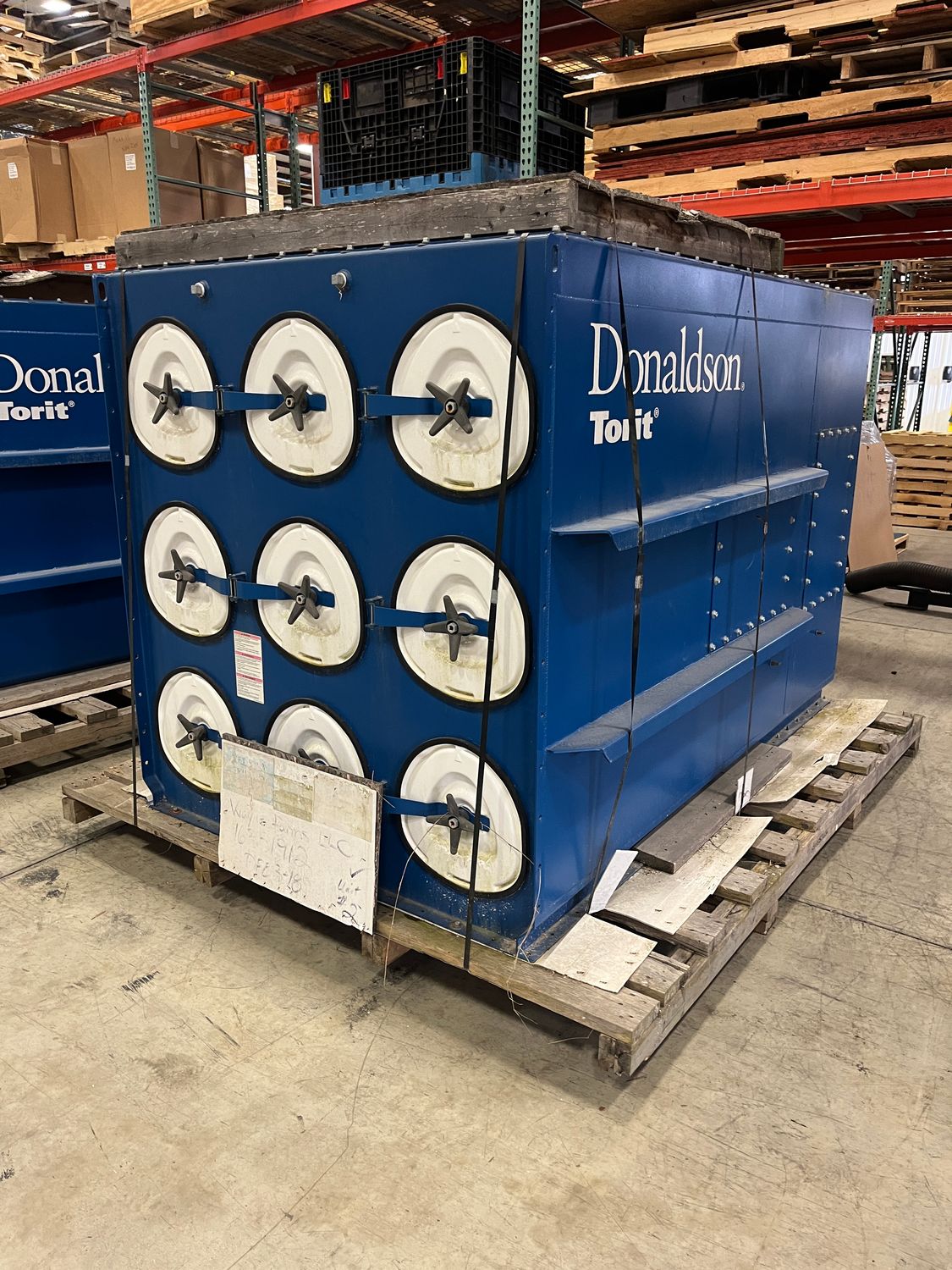

Donaldson Torit DFE3-18 #1 EX Rated Dust Collector, includes:
- NEW, shipped Jan 2023, never installed, still on pallets
- tested and works
- iCue (cloud monitoring of system), free subscription
- (18) ultraweb fire retardant filters, 4572 sq. ft of media
- reverse air filter cleaning system
- drop out zone, so debris and sparks drop up before filters
- leg structure for 55 gallon drum setup
- slide gate under hopper outlet
- EX rated Sealed Drum Kit with 55 gallon drum
- EX Vent (top), with burst sensor
- 24" inlet (rear facing to avoid EX vent)
- left side mount fan support
- NPT connection for sprinkler, if desired
- Hardware Kit (nuts/bolts, plumber's putty)
- filter pressure tubing
- drawing
- installation manual
- parts manual
AirPro Fan, includes:
- NEW, sitting in parking since shipped Jan 2023, never installed
- tested and works
- 15000 cfm at 10" wg
- 50 HP
- adjustable damper
- mounts to left side of collector, support stand included
- direct drive
- exhaust silencer
Fan Exhaust Stack, includes:
- transition from silencer, Donaldson blue painted
- galvanized exhaust stack
- butterfly self closing damper to keep rain out
Boss Vigiflap Ductwork No Return Valve, includes:
- NEW, sitting in parking since shipped Jan 2023, never installed (covered in wrap)
- tested and works
- 24"
- trip arm sensor
- dust accumulation sensor
Donaldson Torit Control Panel, includes:
- NEW, stored indoors since Jan 2023
- tested and works
- single panel for ease of installation, 460V/3, NEMA12, safety disconnect, contactor/overload, iCue controls, digital Delta P + filter cleaning controls, on/off with green running light, shutdown controls for Boss ductwork explosion valve trip switch and accumulation sensor, shutdown controls for Fike explosion vent burst indicator, local/remote selector switch, remote on/off controls with green running light.
